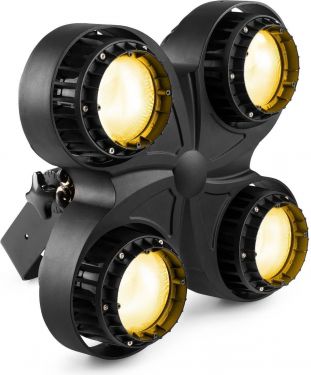

The IP65 rated SB420IP Stage Blinder is a powerful LED lighting fixture with a rugged aluminium design featuring Chip-on-Board (COB) LEDs that combines two effects in its housing. In addition to a standard stage blinder, this fixture can also be used as an authentic blinder effect. (Tungsten mode) The SB420IP matches the blinding light output of a conventional Audience Blinder and can be controlled in standalone mode or directly via DMX. The LEDs feature up to a 60.000 hour life expectancy.
4x 85W Warm White COB LEDs
4x 20W Amber COB LEDs
Tungsten mode
Rugged die-cast aluminium exterior
4-button control panel and LED menu display
DMX/RDM and Stand-alone mode
1, 3, 5 or 9 DMX channels
Master/slave function
Auto mode with adjustable speed
IP65 rated DMX and Powerconnector TR in/out
Product colour
Black
Light source
2-in-1 LED
Colours
Amber, Warm White
LED power (single LED)
100W
Quantity of LEDs
4
Beam angle
48
Field angle
74
Illuminance
17.300 lx @ 1m
DMX channels
1, 3, 5, 9
DMX connection
3-pin XLR
Modes
Automatic programs, DMX, Manual, Master/Slave
IP rating
IP65
Cooling
Convection
Display
LED
Power plug
P-Con TR1
Power consumption
3.28 - 1.50A
Power supply
100-240VAC 50/60Hz
Dimensions (L x W x H)
390 x 390 x 245 mm (with bracket 390 x 390 x 390 mm)
