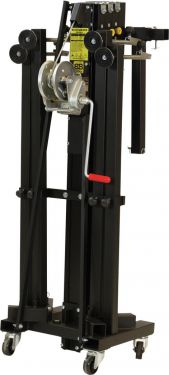

High-quality truss lift for loads up to 220 kg, made in EU - Four-part telescopic ground support
- Safety bolts to lock the different sections at different heights
- Locking bolts in the base area to lock the booms
- Booms with adjustable spindle and steel plate with non-slip rubber base
- Corrosion protection through epoxy coating
- Water level to ensure a vertical position
- Earthing connection
- Transport rolls to move the lift when retracted
- AL-KO COMPAC 900 winch: Maximum load 900 kg with automatic holding brake. CE declaration of conformity in compliance with the harmonized standards DIN EN 13157, EN 12100 I and II, EC Machinery Directive 2006/42/CE
- Galvanized steel ropes 6x19+1, manufactured in compliance with the standard 13414-1:2004, tensile strength 1770N/mm2
- Material: Carbon steel S-275-J0H, manufactured in compliance with the standards EN10219 and EN10305.5
- Adjustable height
- Made in Europe
- With BGV-C1 test certificate
| Maximum carrying capacity: | 220 kg | | Minimum load: | 40 kg | | Nominal tensile strenght of rope: | 1770 N/mm² | | Height: | Maximum: 500 cm above 4 sections
Minimum: 157 cm | | Steel rope: | Ø 6 mm | | Type (general stands): | Truss lifter | | Material: | Steel (powder-coated) | | Transport dimensions: | 1,55 m x 60 cm x 55 cm | | Base area: | Ø 2,2 m | | Weight: | 101,00 kg |

|
