 | Kategorier |  | |  | Produsenter | | | | | | Informasjon | | | | | | Eurolite MD-3010 Safety Rotary Motor 10A16H42 | 50301510
Leveringstid: 6 til 10 dager. | |
| |

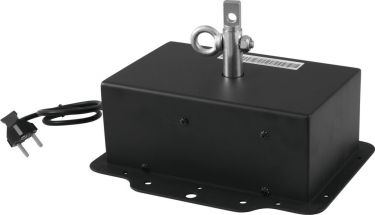

| | Mirror ball motor for mirror balls up to 100 cm diameter Spiegelkugelmotor für Kugeln bis 100 cm - The maximum load always means the mirror ball weight including chains and the fixation material
- 2 chains and 4 quick links must be ordered separately
- 1 rotation per minute
- The motor always has to be installed with a secondary safety attachment
- Before taking into operation for the first time, the installation has to be approved by an expert
- Control via plug and play
- Suitable for a mirror ball with a diameter of up to 100 cm
- LGA tested
- For application areas such as: Clubs/dancing school
- 1 x motor, 1 x user manual
| Power supply: | 230 V AC, 50 Hz | | Power consumption: | 7 W | | IP classification: | IP20 | | Protection class: | Protection class I | | Power connection: | Fixed power supply cord with safety plug | | Cable construction: | 3 x 0,75 mm² H05VV-F | | Cable length: | Approx. 0,9 m | | Speed: | 1 RPM , 360 ° | | Control: | Plug and play | | Maximum load: | 40 kg | | Max. mirror ball diameter: | 100 cm (EUROLITE) | | Housing color: | Black matte | | Diameter mounting holes: | 2 x Ø12mm; 4 x Ø7mm; 10 x Ø6mm | | Material: | Metal, 3 mm | | Dimensions: | Length: 28,5 cm
Width: 23,5 cm
Height: 18,5 cm | | Weight: | 5,60 kg |
 | | | | |
