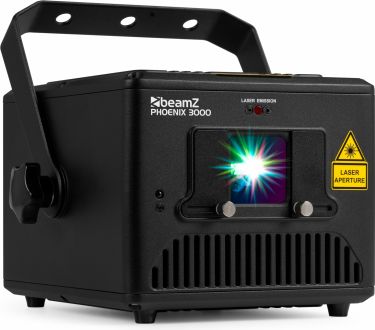

Phoenix 3000 Analog Laser System

The beamZ Phoenix Laser series offers powerful animation lasers with over a hundred built-in effects and patterns. These lasers feature analog modulation, allowing for the display of up to 16.7 million color tones and the ability to "dim" the laser beam output, for audience safety. The rear panel includes a DMX in/output with 3-pin XLR connectors and an ILDA in/out connection, the standard for linking laser displays to control devices via an ILDA cable. When using a DMX controller, the Phoenix lasers provide 10 or 34 DMX channels. Additionally, these lasers can operate in sound-activated mode, thanks to the built-in microphone. The package includes 2 keys for the key switch, a remote interlock bypass, and a remote control.

• 3W Full-colour RGB laser projector
• Semiconductor laser diode
• Red (400mW), Green (1000mW) and Blue (1600mW) laser modules
• 25K high speed optical scanner system
• Scan angle: 40°
• Beam divergence: <1.0mrad (full angle)
• DMX and Stand-alone mode
• Sound activated with adjustable sensitivity
• Auto mode
• Preprogrammed patterns and animations
• DMX in/output via 3-pin XLR
• PC/Laptop controllable via ILDA (DB25)
• Laser cover plate on the front
• Control panel with LCD display with function setting knob
• Incl. 2 keys and interlock bypass
• Incl. remote control
