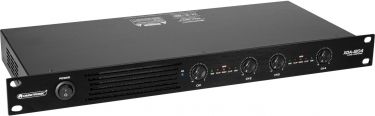

 | Kategorier |  | |  | Produsenter | | | | | | Informasjon | | | | | | Omnitronic XDA-1204 4-Channel Class D Amplifier 10B04D73
Leveringstid: 6 til 10 dager. | |
| |
| | Class D multi-channel PA amplifier with SMPS, 4 x 300 W RMS (4 ohms), 4 x 180 W RMS (8 ohms) - Extremely low weight and height due to integrated switch mode power supply
- 3 operating modes can be selected (stereo, parallel or bridged)
- Level control per channel
- (19) 48.3 cm rack installation 1 U
- 1 x amplifier, 1 x user manual, 1 x power cord, 6 x screw plug-in terminal, 4 x foot
| Power supply: | 230 V AC, 50 Hz | | Power consumption: | 1440 W | | Protection class: | Protection class I | | Output power: | 4 x 300 W RMS (4 ohms)
4 x 180 W RMS (8 ohms)
2 x 600 W RMS bridged (8 ohms)
2 x 600 W RMS bridged (100 V) | | Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) | | Frequency range: | 20 - 20000 Hz | | S/N ratio: | >100 dB | | THD: | <0,05 % at 1 kHz | | Impedance: | Input: 20 kOhm , bal.
Input: 10 kOhm , unbal. | | Circuitry: | Class D | | Control elements: | Power switch, mode switch (stereo/parallel/bridged), level control per channel | | Controls: | Softstart; overheat; overload; short-circuit; DC voltage | | Status LED: | Power, signal, clip, bridged | | Connections: | Input: line via 4 x 3-pin XLR
Output: line via 4 x 3-pin XLR
Output: speaker via 4 x speaker built-in socket (F)
Output: speaker via 4 x screw plug-in terminal
Input: line via 4 x screw plug-in terminal | | Housing design: | (19") 48.3 cm rack installation 1 U | | Dimensions: | Width: 48,3 cm
Depth: 20,5 cm
Height: 4,4 cm | | Weight: | 3,33 kg |

 | | | | |
