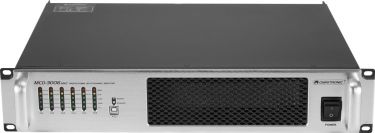

Omnitronic MCD-3006 MK2 6-Channel Installation Amplifier

10B01D97

12.489,00NOK

Prisen er inkl. 25% mva

Leveringstid: 6 til 10 dager.

Class D multi-channel PA amplifier with SMPS, 6 x 500 W RMS (4 ohms), 6 x 250 W RMS (8 ohms)

PA amplifier with integrated limiter for multi-zone applications
Signal inputs via balanced XLR mounting jacks and terminal blocks
Tamper-proof level adjustment on the rear panel
3-fold output meter with clip LED per channel
Rugged steel chassis with aluminum front panel
Highly efficient Air flow from front to rear
The device is cooled by cooling fan
(19) 48.3 cm rack installation 2 U
1 x amplifier, 1 x power cord, 6 x screw plug-in terminal, 4 x foot, 4 x screw, 1 x user manual

Power supply:	230 V AC, 50 Hz
Power consumption:	525 W 1/8 power
Output power:	6 x 500 W RMS (4 ohms) 6 x 250 W RMS (8 ohms)
Power connection:	Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Frequency range:	22 - 25000 Hz
S/N ratio:	>120 dB
THD:	<0,003 % at 1 kHz
Cooling:	2 x cooling fan , Air flow from front to rear
Impedance:	Input: 22 kOhm , bal. Input: 12 kOhm , unbal.
Gain:	26 dB
Circuitry:	Class D
Slew rate:	>10 V/µs
Damping factor:	>500
Control elements:	Power switch, level control per channel
Controls:	Softstart; short-circuit; overheat; overload; DC voltage; power on/off transient
Status LED:	Power, level meter, clip, protect, Standby
Connections:	Input: line via 6 x 3-pin XLR Input: line via 6 x screw plug-in terminal Link: speaker via 6 x screw plug-in terminal
Max. level:	Input: +2 V
Housing design:	(19") 48.3 cm rack installation 2 U
Dimensions:	Width: 48,3 cm Depth: 38,8 cm Height: 8,9 cm
Weight:	9,05 kg
