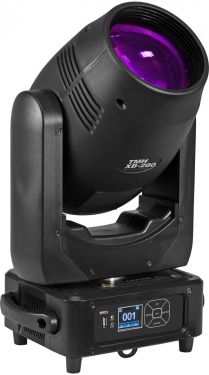

Bright, narrow beam with OSD 10 280W discharge lamp, color wheel, gobos and prisms
Equipped with an OSD 10 Reflector 280W discharge lamp
Positioning within 540° PAN and 270° TILT
Exact positioning (16 bit resolution)
Color wheel; Focus motor-driven; gobo wheel with static gobos; frost filter; Prism 8-fold rotating; Prism 24-fold rotating
Color wheel with 14 dichroic filters plus open half colors selectable, Rainbow effect with adjustable speed in both directions
Gobo wheel with static gobos, 13 gobos und open shake effect
The device is cooled by cooling fan
Control via DMX; stand-alone; Master/slave function; Sound to light via Microphone; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
With a beam angle of 2°
Multicolor LCD display
Dimmer electronic
Strobe effect
Preprogrammed in LED PC-Control 512; Light Captain
For application areas such as: Clubs/dancing school; Stage; Rental
Application possibility: Standing; suspended
1 x moving light, 1 x user manual, 1 x power cord, 2 x omega bracket
Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
385 W
IP classification:
IP20
Power connection:
Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Fuse:
T 5 A Fuse replaceable
Lamp type:
Discharge lamp
Max. TILT movement:
270° Exact positioning (16 bit resolution)
Max. PAN movement:
540° Exact positioning (16 bit resolution)
Flash rate:
1 - 18 Hz
Equipment:
Color wheel; Focus motor-driven; gobo wheel with static gobos; frost filter; Prism 8-fold rotating; Prism 24-fold rotating
Color generation:
Color wheel with 14 dichroic filters plus open Half colors selectable, Rainbow effect with adjustable speed in both directions
Gobos:
Gobo wheel with static gobos, 13 gobos und open Shake effect
DMX channels:
16; 19
DMX input:
3-pin XLR (M) mounting version
DMX output:
3-pin XLR (F) mounting version
Cooling:
Cooling fan
Control:
DMX; stand-alone; Master/slave function; Sound to light via Microphone; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Preprogrammed in:
LED PC-Control 512; Light Captain
Beam angle:
2°
Beam angle (1/2 peak):
2°
Housing color:
Black
Display type:
Multicolor LCD display
Dimensions:
Width: 30,0 cm Depth: 20,5 cm Height: 50,5 cm
Weight:
14,80 kg
Noise classification:
Class 4 (loud noises)
