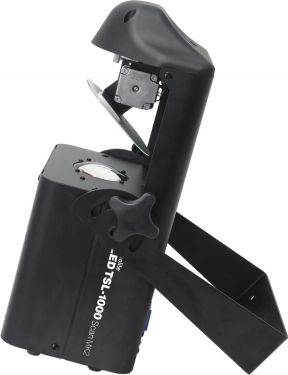

Scanner with 100 W LED, rotating gobos, 3-facet prism, color wheel and motorized focus
Note: The macro programs of the predecessor model (no. 51786122) are not identical, therefore no synchronous master/slave operation is possible between these devices.
1 powerful LED 100 W COB (chip-on-board) cold white (CW)
Positioning within 160° PAN and 50° TILT
Exact positioning (16 bit resolution)
Focus motor-driven; color wheel; gobo wheel with rotating gobos; Prism 3-fold
Gobo effect; Strobe effect
Color wheel with 8 dichroic filters plus open half colors selectable, Rainbow effect with adjustable speed in both directions
Gobo wheel with rotating gobos, 7 gobos and open shake effect
Gobos changeable
Slot-in gobo system for easy gobo replacement
Integrated show programs
The device is cooled by cooling fan
Control via stand-alone; DMX; Master/slave function; Sound to light via Microphone
Flicker-free
With a beam angle of 20°
OLED display
Dimmer electronic
Preprogrammed in Light´J; Light Captain; EASY SHOW 2; EASY SHOW 3
Rubber feet
Mains input and output for power linking up to 8 units
1 x light effect, 1 x user manual, 1 x power cord, 1 x safety eyelet
Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
110 W
IP classification:
IP20
Protection class:
Protection class I
Power connection:
Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Power output:
P-Con (gray), mounting version
Fuse:
5 x 20 mm, T 4 A Fuse replaceable
Lamp type:
LED lamp
LED:
1 x 100 W COB (chip-on-board) cold white (CW)
Color temperature:
8000K
Max. TILT movement:
50° Exact positioning (16 bit resolution)
Max. PAN movement:
160° Exact positioning (16 bit resolution)
Flash rate:
1 - 25 Hz
Equipment:
Focus motor-driven; color wheel; gobo wheel with rotating gobos; Prism 3-fold
Color generation:
Color wheel with 8 dichroic filters plus open Half colors selectable, Rainbow effect with adjustable speed in both directions
Gobos:
Gobo wheel with rotating gobos, 7 gobos and open Shake effect Gobos changeable Slot-in gobo system for easy gobo replacement
DMX channels:
10; 15
DMX input:
3-pin XLR (M) mounting version
DMX output:
3-pin XLR (F) mounting version
Cooling:
Cooling fan
Control:
Stand-alone; DMX; Master/slave function; Sound to light via Microphone
