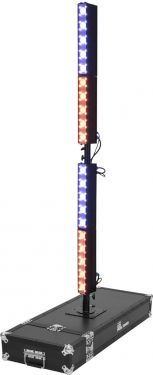

Multifunctional vertical light effect with mounting option on the supplied case
Every LED bar can be manually rotated centrally at the joint
Connection between the two LED bars can be extended spatially at will via P-Con and 3-pin XLR cables
80 powerful LEDs 0,3 W SMD 5050 warm white (WW) 4 segments controlled separately
20 powerful LEDs 15 W high-power 4in1 QCL RGBW (homogenous color mix) LEDs controlled separately
Dimmer electronic; color blend stepless; color change adjustable; colors preset
Strobe effect
96 integrated show programs
The device is cooled by passive convection cooling
Control via DMX; Sound to light via Microphone; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); IR remote control; stand-alone
With a beam angle of 8°
TV pin
Silent operation
Preprogrammed in LED PC-Control 512; Light Captain; Light´J
With Mounting bracket
For application areas such as: Wedding/gala/events; mobile use; Stage; mobile djs/entertainer
Application possibility: Standing; suspended; on tripod
2 x segment, 1 x remote control, 1 x case, 1 x user manual, 2 x power cord, 4 x angle, 1 x stand, 4 x washer, 4 x diffusor cover, 8 x knurled screw, 1 x holder, 2 x mounting bracket, 3 x xLR cable
Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
250 W
IP classification:
IP20
Lamp type:
LED lamp
LED:
80 x 0,3 W SMD 5050 warm white (WW) 20 x 15 W high-power 4in1 QCL RGBW (homogenous color mix)
DMX channels:
12; 20; 27; 84; 5
DMX input:
1 x 3-pin XLR (M) mounting version
DMX output:
1 x 3-pin XLR (F) mounting version
Cooling:
Passive convection cooling
Control:
DMX; Sound to light via Microphone; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); IR remote control; stand-alone
Preprogrammed in:
LED PC-Control 512; Light Captain; Light´J
Beam angle:
8°
Beam angle (1/2 peak):
8°
Housing color:
Black
Attachment system:
TV spigot Ø 28mm Mounting bracket
Weight:
12,00 kg
Noise classification:
Class 0 (no noise at all)
Device
Dimensions:
Length: 1,1 m Width: 44 cm Height: 2 m
Segment
Dimensions:
Length: 92 cm Width: 10,1 cm Height: 7 cm
Case
Dimensions:
Length: 1,1 m Width: 44 cm Height: 18 cm
Remote control
Battery:
Button cell 3.0 V CR2025 lithium manganese built-in
