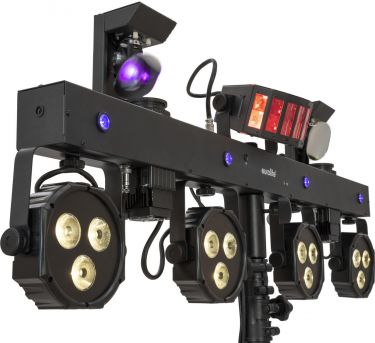

Compact bar with derby, spots, scanners, UV effect, QuickDMX port and bag
Crossbar with integrated DMX control unit and TV spigot for tripod installation
When fog is used, this effect becomes especially attractive
Positioning within PAN and TILT
Color wheel; gobo wheel with static gobos
20 integrated show programs
Control via DMX; IR remote control; Sound to light via Microphone; stand-alone; Master/slave function; Wireless footswitch (optional); QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
OLED display
For application areas such as: Rental; small rental; Wedding/gala/events; mobile use; mobile djs/entertainer
Mains input and output for power linking up to 8 units
Color wheel with 8 dichroic filters plus open half colors selectable
Preprogrammed in Light Captain; EASY SHOW 2; EASY SHOW 3
Application possibility: Suspended; on tripod
3 powerful LEDs 7 W high-power 4in1 QCL RGB/WW (homogenous color mix) 4 spots controlled separately
1 x device, 1 x user manual, 1 x power cord, 1 x declaration of conformity, 2 x mounting bracket, 1 x remote control, 1 x battery, 1 x bag, 2 x knurled screw, 2 x washer, 1 x terminating plug (power)
Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
115 W
IP classification:
IP20
Protection class:
Protection class I
Power connection:
Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Power output:
P-Con (gray), mounting version
Fuse:
5 x 20 mm, T 2 A Fuse replaceable
Lamp type:
LED lamp
Equipment:
Color wheel; gobo wheel with static gobos
Color generation:
Cold white (CW)
Color generation:
Color wheel with 8 dichroic filters plus open Half colors selectable
DMX channels:
3; 7; 13; 14; 15; 18; 19; 30; 32; 39
DMX input:
1 x 3-pin XLR (M) mounting version
DMX output:
1 x 3-pin XLR (F) mounting version
Cooling:
Cooling fan
Control:
DMX; IR remote control; Sound to light via Microphone; stand-alone; Master/slave function; Wireless footswitch (optional); QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
