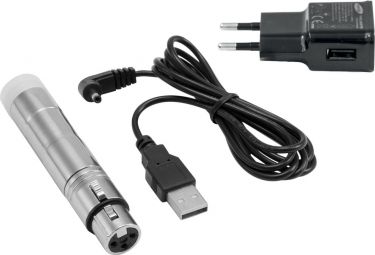

Compact 3-pin XLR adapter (female) with built-in antenna
Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
32-bit ARM processor for delay-free transmission
Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX transceiver and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
Group mode
Multicolored LED indicator
Battery operation up to 20h
Control via QuickDMX; plug and play
Operating range up to 400m
Cordless, flexible and versatile
1 x device, 1 x user manual, 1 x declaration of conformity, 1 x external mains adapter, 1 x uSB cable
Power supply:
5 V DC
Pin configuration:
Inside + outside -
IP classification:
IP20
Power connection:
Mains input via Coaxial power connector (M) mounting version power supply cord for USB A mains connection (provided)
Battery pack type:
1 x lithium ion 3,7 V, 450 mAh, 1,665 Wh
Battery pack:
Battery operation up to 20h
DMX output:
3-pin XLR (F)
Control:
QuickDMX; plug and play
Carrier frequency:
2,4 GHz
Modulation:
GFSK
Parallel mode:
Max. 6 transmitter
Range:
Range up to 400m
Color:
Silver
Dimensions:
Length: 9,50 cm Diameter: Ø 1,8 cm
Weight:
140 g
