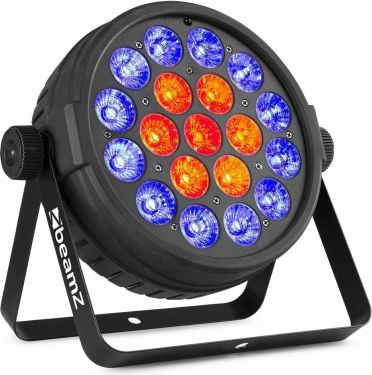

The BT-4 series is a range of high powered LED pars built into a slimline ABS housing so it can fit in the tightest of spaces like box truss. These fixtures are equipped with a power-connector in/out for daisy chaining multiple units together. All BT4 models have pre-set programs that can be used in stand-alone mode. In the DMX settings there is the choice of different DMX modes with pre-set colour macro's or a mode where you can control every single colour individually per section. The same can be done in stand-alone mode with the supplied remote control. The robust ABS housing and double stand also make the BT Pars ideal for rental as they are lightweight and easy to setup. Ideal for DJs, bands, stages and venues wanting a great colour wash.
19x 10W 4-in-1 LEDs
Circle pixel controlled
RGBW Colour mixing with full saturation control
Colour Temp. 2700 - 8000K
CTB and CTO Colour
Lightweight ABS housing
10 or 22 DMX channels
Built-in programs
DMX and Stand-alone mode
Master/slave function
0-100% Dimmer
Sound controlled
Auto mode
DMX in/output via 3-pin XLR
Control panel with LED display
Power-connector input/output
IR remote control
Double bracket also acts as floor stand
Product colour
Black
Light source
4-in-1 LED
Colours
Red, Green, Blue, White
LED power (single LED)
10W
Colour temperature
2700K - 8000K
Quantity of LEDs
19
Beam angle
22°
Field angle
37°
Illuminance
26510 lx @ 1m
Flash rate per second
0 - 25Hz
DMX channels
10, 22
DMX connection
3-pin XLR
Modes
Automatic programs, DMX, Master/Slave
IP rating
IP20
Cooling
Fan
Display
LED
Power plug
P-Con
Power consumption
1.45 - 0.68A
Power supply
100-240VAC 50/60Hz
Dimensions (L x W x H)
220 x 270 x 115mm
Weight (kg)
2,20
Included accessories
Remote control (wireless), Mounting bracket, Safety cord, Power cable, DMX cable
pdf
