Leveringstid: 6 til 10 dager. | |
| |

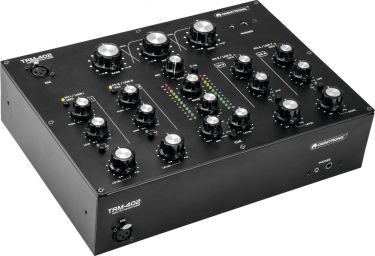

| | 4-channel rotary mixer with 3-band frequency isolator for DJs 4-Kanal-Rotary-Mixer mit 3-Band-Frequenzisolator für DJs - Classic rotary mixer with 4 input channels and integrated 3-band frequency isolator for DJs
- Gain control, 2-way equalizer (highs/lows) and phono/line switching per channel
- Dedicated boost and kill cut
- Kill cut feature allows DJs to completely remove low, mid and high frequencies for amazing mixing
- Classic ALPS potentiometers (Blue Velvet RK27)
- High-grade components ensure long life and excellent sound quality
- DJ microphone input with separate level control
- Prefader listening to input channels and the master output via adjustable headphones output, with cue mix/split function
- 12-digit stereo LED level meter and master level control
- Booth output with separate level control
- Dual inputs for DJ microphone and headphones on the top and front panel
- Outputs: master and booth (XLR/RCA L/R), record (stereo RCA)
- Desktop console housing
- 1 x device, 1 x power cord, 1 x user manual
| Power supply: | 100-240 V AC, 50/60 Hz | | Power consumption: | 7,2 W | | Protection class: | Protection class I | | Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) | | Frequency range: | 20 - 20000 Hz Microphone
20 - 20000 Hz line
40 - 18000 Hz phono | | S/N ratio: | >77 dB phono
>80 dB Microphone
>85 dB line | | THD: | Line <0,03 % at 1 kHz
Phono <0,1 % at 1 kHz | | Gain: | Microphone 44 dB
Line 20 dB
Phono 60 dB to +75 dB | | Isolators: | Master Gain:- ∞ bis +9
Low/mid 300 Hz, 18db/oct , Butterworth
Mid/high 4000 Hz, 18db/oct , Butterworth | | Control elements: | Power switch, source selector, Cue mix split function, tone control | | Status LED: | Power, master level meter, chanal source, CUE, Microphone | | Connections: | Input: line via 4 x stereo RCA
Input: line/phono via 4 x stereo RCA
Input: Microphone via 2 x 3-pin XLR
Output: headphones via 2 x 6.3 mm jack socket (stereo) mounting version
Output: headphones via 2 x 3.5 mm jack (stereo) mounting version
Output: rec. via 1 x stereo RCA
Output: booth via 2 x 3-pin XLR
Output: booth via 1 x stereo RCA
Output: master via 2 x 3-pin XLR
Output: master via 1 x stereo RCA | | Channels: | Input chanel: 4 x stereo with Line-Line/Phono switch via RCA, channel control via Rotary, 2-band tone control EQ, gain control, Phono gain rotery, CUE switch, source selector
Microphon chanal: 1 x mono via XLR, channel control via Rotary dial, ON AIR switch,
Booth output: 1 x stereo via XLR or RCA, channel control via Rotary dial
Master output: 1 x stereo via XLR or RCA, channel control via Rotary dial
Headphones output: 1 x stereo via Jack, channel control via Rotary dial, Cue mix split function, | | Max. level: | Output: +22 dBu | | Material: | Metal | | Color: | Black | | Housing design: | Desktop console housing | | Dimensions: | Width: 33 cm
Depth: 24,7 cm
Height: 10,7 cm | | Weight: | 4,05 kg |


| | | | |
