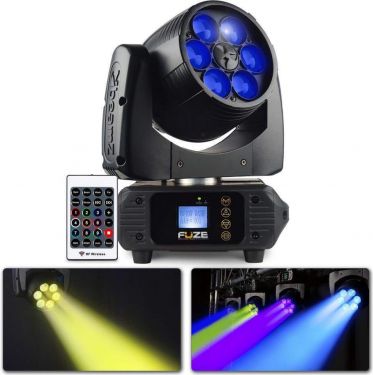

The Fuze610Z is powered by 6x 10W RGBW 4-IN-1 colour LEDs and is equipped with motorised zoom allowing for a variable beam angle from 2°- 24°. With the high-quality optics it’s also possible to combine all six light beams into one big, fat beam. Exact positioning is possible through 16-bit movement resolution (540-degree pan and 180-degree tilt). The fixture is designed in a compact housing and is ideal for lighting designers, DJs, bands, clubs, bars and installations where small footprint and low weight is critical. It can be controlled by DMX, with sound activation or used in standalone mode with the Master/Slave function.
6x 10 RGBW LEDs
13 or 15 DMX channels
DMX and Stand-alone mode
Master/slave synchronization
Sound activated with adjustable sensitivity
Auto mode
Beam angle 2°-24°
Electronic linear zoom
0-100% Electronic Dimmer
Strobe: 1-21Hz
Automatic pan/tilt correction
Reset function
Control panel with LCD display
DMX in/output via 3-pin XLR
Powerconnector input/output
Quick lock omega clamp included
DMX cable included
Powerconnector cable and safety cord included
Included remote control
Light source
4-in-1 LED
Colours
Red, Green, Blue, White
LED power (single LED)
10W
Quantity of LEDs
6
Beam angle: Min
2
Beam angle: Max
24
Field angle: min
8
Field angle: max
41
Illuminance
39.000lx@1m
Head movement: Pan
630
Head movement: Tilt
270
Flash rate per second
1 - 21Hz
Modes
Automatic programs, DMX, Manual, Master/Slave
Sound to light mode
Yes
DMX channels
13, 15
DMX connection
3-pin XLR
Display
LCD
IP rating
IP20
Cooling
Temperature controlled fan
Power plug
P-Con
Power consumption
1.1 - 0.6A
Power supply
100-240VAC 50/60Hz
Dimensions (L x W x H)
240 x 230 x 260
Weight (kg)
4,55
Included accessories
Remote control (wireless), Mounting bracket, Safety cord, Power cable, DMX cable
