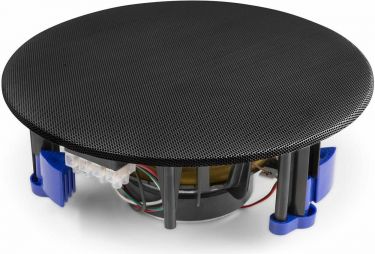

The NCSP series is a series of low profile ceiling speakers with a quick fit system for easy assembly. This high quality 2-way speaker is equipped with a metal flush fitting grille (with magnetic closure) and a 100V line transformer. Ideal for the installation of several speakers at longer distances. - 100V Ceiling speaker
- Magnetic fit steel grille
- Slim low-profile speaker grille for a sleek finish
- 2-Way coaxial speaker
- Supplied per piece
- Colour: Black
| Speaker type | Passive (non-amplified) | | Product colour | Black | | Output power: RMS | 40W | | Tweeter type | Mylar | | Diameter tweeter | 1/2" | | Diameter woofer | 8" | | Magnet type | Ferrite | | Impedance | 100V | | Tappings power (100V) | 10W, 20W, 40W | | Frequency response | 40Hz - 20.000Hz | | SPL @ 1W/1m | 92dB | | IP rating | N/A | | Mounting diameter | 229mm | | Mounting depth | 87mm | | Dimensions (L x W x H) | Ø254mm | | Weight (kg) | 1,10 |
