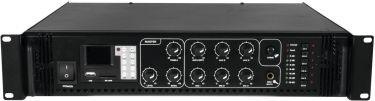

 | Categories |  | |  | Manufacturers | | | | | | Information | | | | | | Omnitronic MPZ-500.6P PA Mixing Amplifier 10A22G00 | 80709752
Delivery time: 4-8 workdays. | |
| |
| | 6-zone-PA mixing amplifier with audio player and remote control, switchable zones, 500 W RMS 6-Zonen-ELA-Mono-Mischverstärker mit MP3-Player & IR-FB, Zonen schaltbar, 500 Watt - Comfortable control of PA speakers via 6-zone technology
- 6 PA zone outputs, independently switchable on the front panel
- Output for low-impedance speakers (4-16 ohms)
- SD card slot and USB port
- Folder navigation and repeat functions (1, All)
- 2 rear microphone inputs (6.3 mm jack, unbal.)
- 1 front microphone input (combination XLR/6.3 mm jack, unbal.) with adjustable priority circuit
- All microphone inputs with separate level controls
- 3 line inputs (stereo RCA) with separate level controls
- 1 line output (stereo RCA)
- Chime, switchable
- Treble and bass control for the output signal
- 7-digit LED level meter
- Master control for the output signal
- The device is cooled by cooling fan
- Control via IR remote control
- (19) 48.3 cm rack installation 2 U
- 1 x remote control, 1 x user manual, 1 x amplifier, 1 x battery
| Power supply: | 230 V AC, 50 Hz | | Power consumption: | 1000,00 W | | Output power: | 500 W RMS | | Power connection: | Fixed power supply cord with safety plug | | Frequency range: | 80 - 16000 Hz | | S/N ratio: | >75 dB Microphone
>85 dB line | | THD: | <0,5 % at 1 kHz | | Cooling: | Cooling fan | | Impedance: | Public address systems 100V; 4-16 ohms; Public address systems 70V | | Control: | IR remote control | | Audio player: | USB + SD, | | Zone output: | 6 switchable zones | | Circuitry: | Class AB | | Controls: | Power on/off transient; Overvoltage; short-circuit | | Connections: | Input: Microphone via 2 x 6.3 mm plug (unbal.)
Input: Microphone via 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version)
Input: line via 3 x stereo RCA 0,3 V
Output: speaker via screw terminal
Output: rec. via 1 x stereo RCA | | Equalizer: | Master: 1 x 2-band tone control mono | | Music format: | MP3 | | Number of files: | Max. 999 | | Available storage media: | USB devices/SD cards max. 32GB (FAT 32) | | Housing design: | (19") 48.3 cm rack installation 2 U | | Dimensions: | Width: 48,3 cm
Depth: 38,5 cm
Height: 8,9 cm | | Weight: | 14,70 kg | | Remote control | | Battery: | 1 x Button cell 3.0 V CR2025 lithium manganese built-in |
  | | | | |
