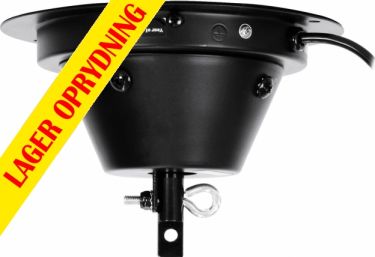

 | Categories |  | |  | Manufacturers | | | | | | Information | | | | | | Eurolite MD-2010 Safety Rotary Motor 10A23D64 | 50301500
 In stock in our shopDelivery time: 1 workday when ordered before 15.00.
| |
| |
| | Mirror ball motor for mirror balls up to 50 cm diameter Spejlkugle motor for op to 50 cm diameter. - The maximum load always means the mirror ball weight including chains and the fixation material
- 2 chains and 4 quick links must be ordered separately
- 1 rotation per minute
- The motor always has to be installed with a secondary safety attachment
- Before taking into operation for the first time, the installation has to be approved by an expert
- Suitable for a mirror ball with a diameter of up to 50 cm
- For application areas such as: Clubs/dancing school
- For further information about this product, please refer to the Data Sheet under Downloads
- 1 x motor, 1 x user manual
| Power supply: | 230 V AC, 50 Hz | | Power consumption: | 3,5 W | | IP classification: | IP20 | | Protection class: | Protection class I | | Power connection: | Fixed Supply cord with open wires | | Cable construction: | 3 x 0,75 mm² H05VV-F | | Cable length: | Approx. 0,9 m | | Speed: | 1 RPM , 360 ° forward/backward | | Maximum load: | 10 kg | | Max. mirror ball diameter: | 50 cm (EUROLITE) | | Housing color: | Black matte | | Diameter mounting holes: | 4 x Ø5mm; 2 x Ø10mm | | Material: | Metal | | Dimensions: | Height: 13 cm
Diameter: Ø 19 cm | | Weight: | 960 g |
| | |
