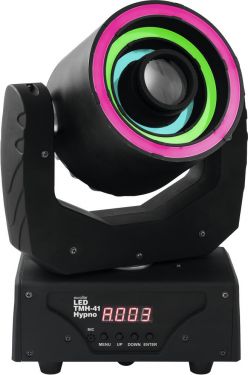

 | Categories |  | |  | Manufacturers | | | | | | Information | | | | | | Eurolite LED TMH-41 Hypno Moving Head Spot 10A16A52 | 51785895
Delivery time: 4-8 workdays. | |
| |
| | Narrow angled spotlight with 3 hypno rings, 30 W LED, gobo and color wheel Eng abstrahlendes Spotlight mit 3 Hypno-Ringen, 30-W LED, Gobo- und Farbrad - Compact lightweight
- 76 powerful LEDs SMD 5050 3in1 TCL RGB (homogenous color mix) segments separate controlling
- 1 powerful LED 30 W COB (chip-on-board) color wheel
- Positioning within 540° PAN and 210° TILT
- PAN angle switchable between 540° and 630°
- Auto position correction (feedback)
- Exact positioning (16 bit resolution)
- Gobo wheel with static gobos; Focus manual
- Gobo effect; beam effect
- Gobo wheel with static gobos, 9 gobos and open shake effect
- Integrated show programs
- The device is cooled by cooling fan
- Control via stand-alone; DMX; Sound to light via Microphone
- Flicker-free
- With a beam angle of 4,7°
- 4 digit 7-segment LED display
- Dimmer electronic; color blend stepless
- Color wheel with 9 dichroic filters plus open
- Preprogrammed in Light´J; LED PC-Control 512; Light Captain
- 1 x moving light, 1 x user manual, 1 x power cord, 1 x omega bracket, 1 x xLR cable, 2 x screw, 2 x washer
| Power supply: | 100-240 V AC, 50/60 Hz | | Power consumption: | 70 W | | IP classification: | IP20 | | Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) | | Lamp type: | LED lamp | | LED: | 76 x SMD 5050 3in1 TCL RGB (homogenous color mix)
1 x 30 W COB (chip-on-board) color wheel | | Max. TILT movement: | 210° Exact positioning (16 bit resolution) Auto position correction (feedback) | | Max. PAN movement: | 540°, 630° Exact positioning (16 bit resolution) Auto position correction (feedback) | | Flash rate: | 0 - 25 Hz | | Equipment: | Gobo wheel with static gobos; Focus manual | | Color generation: | Color wheel with 9 dichroic filters plus open | | Gobos: | Gobo wheel with static gobos, 9 gobos and open
Shake effect | | DMX channels: | 12; 23 | | DMX input: | 1 x 3-pin XLR (M) mounting version | | DMX output: | 1 x 3-pin XLR (F) mounting version | | Cooling: | Cooling fan | | Control: | Stand-alone; DMX; Sound to light via Microphone | | Preprogrammed in: | Light´J; LED PC-Control 512; Light Captain | | Beam angle: | 4,7° | | Beam angle (1/2 peak): | 4,7° | | Housing color: | Black | | Display type: | 4 digit 7-segment LED display | | Dimensions: | Width: 24,5 cm
Depth: 16,5 cm
Height: 35 cm | | Weight: | 5,68 kg | | Noise classification: | Class 3 (clearly perceptible sounds) | | Legal specifications | | Special product: | Not designed for household room illumination | | Intended use: | Show effect lighting |





| | | | |
