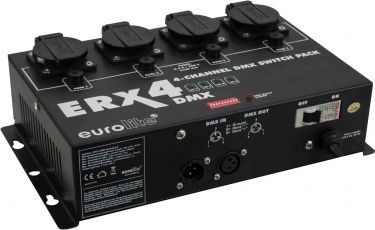

4-channel switch pack, up to 5 A load per channel, control with relay 4-Kanal-Switchpack, bis zu 5 Ampere belastbar, Schaltung per Relais - Relay allows for controlling luminaires with electronic transformers (e.g. LED effects)
- 4 controllable channels
- LED indicator per channel
- 5 A load per channel
- Rugged metal housing
- Control via stand-alone; DMX
- 1 x device, 1 x user manual
| Power supply: | 230 V AC, 50 Hz | | Output power: | Max. 3680 W
Max. 1150 W per channal | | Output current: | Max. 16 A | | Power connection: | Fixed power supply cord with safety plug | | Power output: | 4 x Safety contact (F), hinged lid mounting version | | DMX channels: | 4 | | DMX input: | 1 x 3-pin XLR (M) mounting version | | DMX output: | 1 x 3-pin XLR (F) mounting version | | Control: | Stand-alone; DMX | | Control channels: | 4 | | Color: | Black | | Dimensions: | Width: 30 cm
Depth: 19 cm
Height: 8,5 cm | | Weight: | 2,51 kg |
   |
