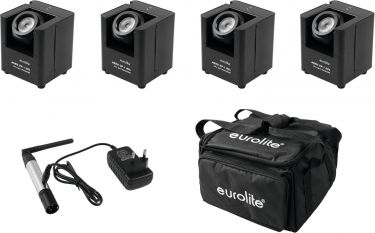

 | Kategorier |  | |  | Produsenter | | | | | | Informasjon | | | | | | Eurolite Set 4x AKKU UP-1 + SB-4 Soft Bag + QuickDMX Wireless transmitter 10A17F09 | 20000267
Leveringstid: 6 til 10 dager. | |
| |
| | 4x LED Uplight with black soft bag and wireless DMX transmitter - Integrated QuickDMX transceiver for wireless DMX control
- Inclination angle of the LED head manually adjustable
- Interchangeable front lens for 9° or 15° beam angle
- Battery operation up to 18h depending on program used
- 1 powerful LED 15 W high-power 4in1 QCL RGBW (homogenous color mix)
- The device is cooled by passive convection cooling
- Control via DMX; stand-alone; QuickDMX; Sound to light via Microphone; IR remote control
- Flicker-free
- With a beam angle of 9°
- For application areas such as: Small lender; Wedding/gala/events
- Dimmer speed (step response) adjustable; colors preset; color blend stepless; color change adjustable; Dimmer electronic
- Strobe effect
- Preprogrammed in Light´J; LED PC-Control 512; Light Captain; EASY SHOW 1; EASY SHOW 2; EASY SHOW 3
- Silent operation
- Cordless, flexible and versatile
- Integrated automatic charging of the battery and status indicator
- 1 x spotlight, 1 x external mains adapter, 1 x remote control, 2 x battery, 1 x lens, 1 x omega bracket, 1 x user manual, 1 x power cord
- Practical transport bag offers enough space for several lighting effects and accessories
- With Dividers
- With 2 Outside pockets
- With 4 Device compartments
- High-quality workmanship with nylon , black, water repellent
- Interior with foam padding cover with foam padding
- 2 carrying straps
- 1 x bag
- User-friendly 3-pin XLR adapter (male) with swivel antenna
- Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
- Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX transceiver and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
- Simultaneous operation of up to 6 transmitters, thus control of 3072 DMX channels (6 DMX universes) possible
- 1 to 512 QuickDMX receivers can be controlled by each transmitter
- LED indication for functions
- Transceiver, to be used as transmitter or receiver
- Can transmit up to 512 DMX channels
- Control via QuickDMX; DMX; plug and play
- Operating range up to 400m
- 1 x device, 1 x user manual, 1 x declaration of conformity, 1 x external mains adapter, 1 x uSB cable
| Weight: | 9,51 kg | | EUROLITE AKKU UP-1 QCL Flex Spot QuickDMX | | Power consumption: | 15 W | | IP classification: | IP20 | | Protection class: | Protection class III | | Power connection: | Battery/battery pack
Mains input via Coaxial power connector (M) mounting version power supply cord with Euro plug (provided) | | Battery pack type: | 1 x lithium ion 7,4 V, 8800 mAh, 65,12 Wh | | Battery pack: | Battery operation up to 18h depending on program used
Recharging time 6h | | Lamp type: | LED lamp | | LED: | 1 x 15 W high-power 4in1 QCL RGBW (homogenous color mix) | | DMX channels: | 3; 4; 6; 8; 10 | | DMX input: | 1 x 3-pin XLR (M) mounting version | | DMX output: | 1 x 3-pin XLR (F) mounting version | | Cooling: | Passive convection cooling | | Control: | DMX; stand-alone; QuickDMX; Sound to light via Microphone; IR remote control | | Preprogrammed in: | Light´J; LED PC-Control 512; Light Captain; EASY SHOW 1; EASY SHOW 2; EASY SHOW 3 | | Beam angle: | 9° | | Beam angle (1/2 peak): | 9°
15° | | Beam angle (1/10 peak): | 18°
30° | | Housing color: | Black | | Carrier frequency: | 2,4 GHz | | Dimensions: | Width: 12 cm
Depth: 12 cm
Height: 14,2 cm | | Weight: | 2,21 kg | | Noise classification: | Class 0 (no noise at all) | | External mains adapter | | Power supply: | 100-240 V AC, 50/60 Hz
8,4 V 3 A | | Remote control | | Battery: | 1 x Button cell 3.0 V CR2032 lithium manganese built-in | | Legal specifications | | Special product: | Not designed for household room illumination | | Intended use: | Show effect lighting | | EUROLITE SB-4 Soft Bag L | | Maximum load: | 25 kg | | Carrying strap: | 2 pc/pcs | | Material: | Nylon | | Color: | Black, water repellent | | Compartment dimensions: | 15 cm x 15 cm x 20 cm | | Inside dimensions: | 31 cm x 34 cm x 20 cm | | Dimensions: | Width: 32 cm
Depth: 41 cm
Height: 20 cm | | Weight: | 520 g | | EUROLITE QuickDMX Wireless Transmitter | | Power supply: | 100-240 V AC, 50/60 Hz
5 V DC 1 A | | Power connection: | Mains input via Coaxial power connector (M) mounting version power supply cord for USB A mains connection (provided) | | DMX channels: | Output 512 | | DMX input: | 1 x 3-pin XLR (M) | | Control: | QuickDMX; DMX; plug and play | | Modulation: | GFSK | | Parallel mode: | Max. 6 transmitter | | Range: | Range up to 400m | | Color: | Silver | | Dimensions: | Length: 21,2 cm
Diameter: Ø 1,8 cm | | Weight: | 150 g |
| | |
