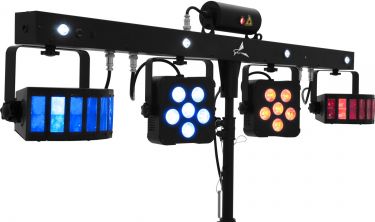

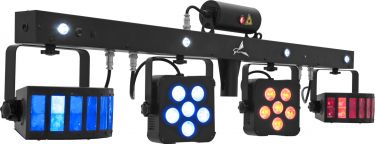

Bar with 2 strong derbies and spots, white/UV strobe LEDs, laser (RG, 2M)
Bar med 2 stærke derbies og spots, hvid / UV strobe LED, laser (RG, 2M.)
Enhanced version with very high brightness and additional UV LEDs
Compact lightweight
Crossbar with integrated DMX control unit and stand sleeve
2 laser diodes project hundreds of red and green laser beams
2 rotating derbies for mirror ball effects
When fog is used, this effect becomes especially attractive
For application areas such as: Wedding/gala/events; mobile use; Clubs/dancing school; mobile djs/entertainer; Rental
39 integrated show programs
The device is cooled by cooling fan
Control via stand-alone; DMX; IR remote control; Sound to light via Microphone; Wireless footswitch; Master/slave function
With Mounting bracket
Preprogrammed in EASY SHOW 1; Light´J; LED PC-Control 512; Light Captain; EASY SHOW 2; EASY SHOW 3
Mains input and output for power linking up to 8 units
Laser; multi beam effect; flower effect; UV effect; Strobe effect
Application possibility: On tripod
Laser class 2M does not require additional protective measures or appointment of a laser safety officer
6 powerful LEDs 6 W high-power 3in1 TCL RGB (homogenous color mix) spots controlled separately
With a beam angle of 13°
6 powerful LEDs 2 W high-power R/G/B spots controlled separately
4 powerful LEDs 2 W high-power 2in1 BCL CW/UV (homogenous color mix) LEDs controlled separately
1 x device, 1 x power cord, 1 x user manual, 1 x declaration of conformity, 1 x remote control, 1 x foot control, 2 x knurled screw, 2 x washer, 2 x mounting bracket, 1 x battery, 1 x bag
Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
150 W
IP classification:
IP20
Protection class:
Protection class I
Power connection:
Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Power output:
1 x IEC connector (F) mounting version
Fuse:
5 x 20 mm, T 3,15 A
Lamp type:
LED lamp
DMX channels:
3; 5; 10; 28
DMX input:
1 x 3-pin XLR (M) mounting version
DMX output:
1 x 3-pin XLR (F) mounting version
Cooling:
Cooling fan
Control:
Stand-alone; DMX; IR remote control; Sound to light via Microphone; Wireless footswitch; Master/slave function
Preprogrammed in:
EASY SHOW 1; Light´J; LED PC-Control 512; Light Captain; EASY SHOW 2; EASY SHOW 3
Housing color:
Black
Attachment system:
2x Mounting bracket
Dimensions:
Width: 1,030 cm Depth: 6,1 cm Height: 38,7 cm
Weight:
10,00 kg
Noise classification:
Class 2 (slight noise)
Power cord
Cable length:
3 m
Laser
Laser class:
2M
Laser color:
R/G
Laser module:
Red (R) 100 mW 650nm Green (G) 30 mW 532nm
Spotlight
LED:
6 x 6 W high-power 3in1 TCL RGB (homogenous color mix)
Flash rate:
0 - 30 Hz
Beam angle:
13°
Beam angle (1/2 peak):
13°
Beam angle (1/10 peak):
20°
Light effect
LED:
6 x 2 W high-power R/G/B
Bar
LED:
4 x 2 W high-power 2in1 BCL CW/UV (homogenous color mix)
Foot control
Battery:
1 x 9.0 V E block 6F22 zinc carbon included
Remote control
Battery:
1 x Button cell 3.0 V CR2025 lithium manganese built-in
