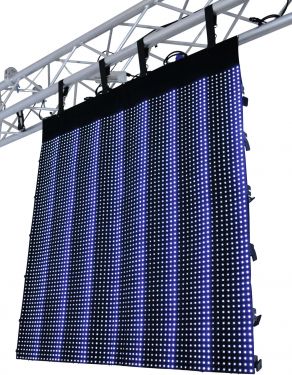

Eurolite LSD-20 MK2 (H)2.56m x (W)1.28m

10A18G23 | 80503260

~~125.439,00NOK~~ 100.759,00NOK

Prisen er inkl. 25% mva

Leveringstid: 6 til 10 dager.

LED soft displays

LED Soft Displays

Flexible displays with tricolor RGB LEDs (type SMD 5050) for bright and colorful projection of videos and graphics
Improved version with even brighter LEDs and new angled connectors
Modular display concept allows the build-up of large areas, ideal for outdoor use with large viewing distances
Bendable and foldable PVC material suitable for various shapes, e.g. columns, circles, angles
Truss suspension via built-in belts
Easy maintenance - LEDs can be replaced without difficulty
Controllable via optional network components and PC software
All-in-one control system T9 (80503301): network interface and software LED Show T9 - ideal system for mobile use with notebooks with 1-gigabit NIC
Control system LED studio: receiver interface (80503311), PCI sending card and software LED Studio (80503130)
Custom sizes available upon request (in 0.32 m units)
8192 powerful LEDs SMD 5050 3in1 TCL RGB (homogenous color mix)
Easy to assemble
Various versions available
B1 low flammability
Space-saving construction
Space-saving storing
Water repellent
Mains input and output for power linking up to 8 units

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	68,00 W
IP classification:	IP44
LED:	8192 x SMD 5050 3in1 TCL RGB (homogenous color mix)
Setup:	Easy to assemble; Space-saving construction; Space-saving storing
Beam angle (1/2 peak):	110°
Image:	Max. 64x124 px Pixel pitch 20 mm Pixeldensity 2500/m² Brightness 3600cd/m²
Lamp life:	100000 h
Material:	, water repellent
Dimensions:	Width: 1,28 m Height: 2,56 m
Weight:	31,72 kg
Display port:	DVI/RJ45
Display mode:	synchronous to video source
Drive mode:	1/8 scan
Screen resolution:	max. 1280 x 1024 (LED Studio)
	max. 1024 x 896 (LED Show T9)
Frame rate:	60 Hz
Data refresh rate:	600 Hz
Colors:	16.7 million (R 256, G 256, B 256)
Operating temperature:	-10 to 45 °C
Humidity:	10 to 90 %
