Eurolite DMX Operator 240 Controller
Trykk for større bilde


design/printicon.gif
Print

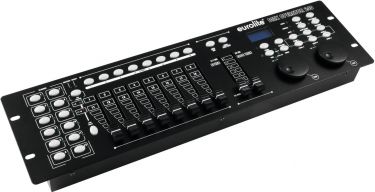

Eurolite DMX Operator 240 Controller

10A24B81 | 70064518


3.019,00NOK 2.809,00NOK

Prisen er inkl. 25% mva


Leveringstid: 6 til 10 dager.

Console for 12 lighting effect units with up to 20 DMX channels, 2 jog wheels

Pult für 12 Geräte (jeweils max. 20 DMX-Kanäle), mit 2 Jogwheels

  • DMX controller for 12 lighting effect units such as moving heads, scanners and LED spot lights
  • 12 fixtures with up to 20 channels each can be controlled
  • 240 DMX channels can be assigned and inverted as desired to 20 control channels (softpatch)
  • USB port for storing program data
  • Manual, time-controlled or sound-controlled chase running mode
  • Fade between scenes adjustable between 0-30 s
  • Copy function for scenes and banks
  • 2 DMX fixture levels can be controlled, each with up to 10 channels
  • 8 DMX channel faders
  • 2 jog wheels for pan/tilt
  • Blackout function
  • Fog machine control possible
  • Supports standard MIDI
  • Firmware update via USB
  • Programmable 30 sequencens each with 8 scenes
  • Programmable 6 chasers each with max. 240 scenes
  • Can transmit up to 240 DMX channels
  • Control via DMX; Sound to light via Microphone; Sound to light via RCA (F) mounting version; MIDI via 5-pin DIN (F) mounting version; Fog machine via 5-pin DIN (F) mounting version; RDM
  • (19) 48.3 cm rack installation 3 U
  • Desktop console housing
  • For application areas such as: Party room; small rental
  • Silent operation
  • 1 x controller, 1 x external mains adapter, 1 x user manual
Power supply:100-240 V AC, 50/60 Hz
9 V DC
Power consumption:2,70 W
IP classification:IP20
Protection class:Protection class III
Power connection:Mains input via 2-pin screw plug connector (M) mounting version power supply cord with AC adapter (provided)
Programs:Programmable
30 Sequences
Each with 8 Scenes
Programmable 6 Chasers
Each with max. 240 Scenes
DMX channels:Output 240
DMX output:1 x 3-pin XLR (F) mounting version
Control:DMX; Sound to light via Microphone; Sound to light via RCA (F) mounting version; MIDI via 5-pin DIN (F) mounting version; Fog machine via 5-pin DIN (F) mounting version; RDM
Housing color:Black
Control elements:DMX polarity selector, power switch
Available storage media:USB devices (FAT 32)
USB port:Typ A
Color:Black
Housing design:(19") 48.3 cm rack installation 3 U
Desktop console housing
Dimensions:Width: 48,3 cm
Depth: 13,5 cm
Height: 8,9 cm
Weight:2,23 kg
Noise classification:Class 0 (no noise at all)
