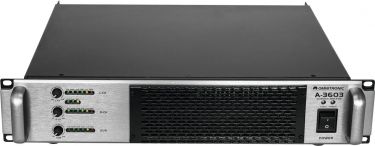

Omnitronic A-3603 Class-D 2.1 Amplifier
Click to enlarge


design/printicon.gif
Print

Omnitronic A-3603 Class-D 2.1 Amplifier

10A14A98 | 10452370


12.489,00NOK

The price includes 25% Danish VAT


Delivery time: 4-8 workdays.

3-channel PA amplifier with crossover network - 4 ohms: 1 x 2000 W, 2 x 800 W

3-Kanal-PA-Verstärker mit Frequenzweiche - 4 Ohm: 1 x 2000 W, 2 x 800 W

  • 3-channel PA amplifier with class D circuitry and switch mode power supply
  • Adjustable crossover frequency for satellites and subwoofer
  • 2.1 operation or 3-channel operation selectable
  • 3 level controls
  • LED VU meter and LEDs for activated protective circuit (protect) and overload (clip) per channel
  • Electronically balanced inputs via XLR mounting jacks, with XLR feed-through outputs
  • Speaker outputs via lockable Speaker plugs
  • Rugged steel chassis with aluminum front panel
  • (19) 48.3 cm rack installation 2 U
  • 1 x amplifier, 1 x user manual, 1 x power cord, 4 x foot, 4 x screw
Power supply:100-240 V AC, 50/60 Hz
Power consumption:685 W 1/8 power
Output power:2 x 800 W RMS (4 ohms)
2 x 400 W RMS (8 ohms)
1 x 2000 W RMS (4 ohms)
1 x 1000 W RMS (8 ohms)
Power connection:Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Frequency range:20 - 20000 Hz
S/N ratio:>100 dB
THD:<0,003 % at 1 kHz
Impedance:Input: 20 kOhm , bal.
Input: 10 kOhm , unbal.
Gain:Chanal 1 26 dB
Chanal 2 26 dB
Chanal 3 32 dB
Circuitry:Class D
Slew rate:>10 V/µs
Damping factor:>500
Control elements:Power switch, level control per channel, mode switch (2/3 channels), crossover frequency
Status LED:Protect, clip, level meter, bridged
Connections:Input: line via 3 x 3-pin XLR
Link: line via 3 x 3-pin XLR
Output: speaker via 3 x speaker built-in socket (F)
Housing design:(19") 48.3 cm rack installation 2 U
Dimensions:Width: 48,3 cm
Depth: 41 cm
Height: 8,9 cm
Weight:9,10 kg
