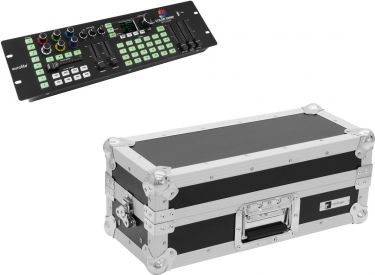

Eurolite Set DMX LED Color Chief + Case

10A23E53 | 20000484

4.839,00NOK

The price includes 25% Danish VAT

Delivery time: 4-8 workdays.

DMX lighting desk with innovative control concept for LED spotlights including flightcase

Easy control of LED spotlights with up to 6 colors, light bars as well as simple lighting effects
For 8 devices or device groups, each with up to 4 segments
Each device can occupy up to 30 channels
Quick and easy programming
Additional fixtures can be configured manually
8 color effects directly selectable
3 additional channels available per fixture (e.g. for rotations)
Color wheel selection and simulation
24 memory spaces for scenes and chases
Several chases can be run simultaneously
USB port for storing program data
Sound control via audio signal or TAP button
Master dimming, fade time and run time easily adjustable
Firmware update via USB
Programmable 24 sequencens
Can transmit up to 240 DMX channels
Control via DMX; Sound to light via RCA (F) mounting version; Sound to light via Microphone
(19) 48.3 cm rack installation 3 U
Desktop console housing
1 x controller, 1 x user manual, 1 x external mains adapter
Upward tilted profile rails for top-operated units
High-quality workmanship with plywood multi-layer glued 7 mm, black, laminated
Interior with foam padding
Removable cover
Aluminum profile frames 30mm with rounded edges
Rugged carrying handle
2 high-quality butterfly locks
Rubber feet
With profile rails suitable for (19) approx. 48 cm units
3 U
1 x case

Weight:	7,35 kg
EUROLITE DMX LED Color Chief Controller
Power supply:	100-240 V AC, 50/60 Hz 9 V DC 800 mA
Power consumption:	10 W
IP classification:	IP20
Power connection:	Mains input via Coaxial power connector (M) mounting version power supply cord with AC adapter (provided)
Programs:	Programmable 24 Sequences
DMX channels:	Output 240
DMX output:	1 x 3-pin XLR (F) mounting version
Control:	DMX; Sound to light via RCA (F) mounting version; Sound to light via Microphone
Housing color:	Black
Available storage media:	USB devices (FAT 32)
USB port:	Typ A
Color:	Black
Housing design:	(19") 48.3 cm rack installation 3 U Desktop console housing
Dimensions:	Width: 48,3 cm Depth: 13,35 cm Height: 8,5 cm
Weight:	2,25 kg
ROADINGER Mixer Case Pro MCA-19-N, 3U, black
Maximum load:	25 kg
Removable covers:	1 pc/pcs
Aluminum profile frames:	30 mm
Carrying handle:	1 pc/pcs
Lock:	Butterfly lock: 2 pc/pcs
Transport aid:	Rubber feet
Material:	Plywood multi-layer glued, 7 mm
Color:	Black, laminated; dark brown, laminated
Inside dimensions:	45 cm x 20 cm x 10,5 cm
Front panel width:	(19") approx. 48 cm
Mounting height:	Approx. 13.5 cm (3 U)
Mounting depth:	105 mm
Housing design:	3 U
Dimensions:	Width: 55 cm Depth: 24 cm Height: 23,5 cm
Weight:	5,10 kg
