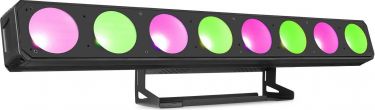

The LUCID is equipped with 4 or 8 high power COB LEDs that can be used for either wash effects or as a pixel controlled bar. With the latest COB technology it's possible to create flawless RGBW colour mixing. The LUCID can either be used in stand-alone mode and run its preset programs in a certain speed or follows the music, thanks to the built-in microphone. But for full control you can also use a DMX controller to program this light effect into your shows. The LUCID can be placed on the floor by turning the bracket upside down, making it ideal for both fixed installations and rental.
LED BAR with 8x 30W COB LEDs
RGBW Colour mixing
Individually controllable LEDs
3, 4, 5, 6, 8, 16 or 20 DMX channels
IR remote control
DMX and Stand-alone mode
Master/slave function
Sound activation with adjustable sensitivity
Auto mode with adjustable speed
DMX in/output via 3/5-pin XLR
Power-connector input/output
Aluminium housing
Control panel with LCD display
Bracket with Quick lock Omega
Product colour
Black
Light source
4-in-1 LED
Colours
Red, Green, Blue, White
LED power (single LED)
30W
Quantity of LEDs
8
Beam angle
45°
Illuminance
4.300 lx @ 1m
Modes
Automatic programs, DMX, Master/Slave
DMX channels
3, 4, 5, 6, 12, 32, 36
DMX connection
3-pin XLR, 5-pin XLR
Daisy chain
Yes (max. 8 bars)
IP rating
IP20
Cooling
Fan
Display
LCD
Power plug
P-Con
Power consumption
0.85A
Power supply
220-240VAC 50Hz
Dimensions (L x W x H)
980 x 150 x 242 mm
Weight (kg)
10,00
Included accessories
Remote control (wireless), Mounting bracket, Power cable
