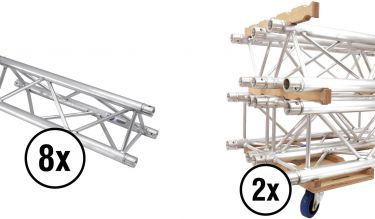

 | Categories |  | |  | Manufacturers | | | | | | Information | | | | | | Alutruss Set TRILOCK 6082-2000 + Truss transport board 10A22B65 | 20000089
Delivery time: 4-8 workdays. | |
| |
| | - Low weight
- Easy installation
- Trusspipe: 50 mm
- TÜV Süd certified
- For application areas such as: Theater; Trade fair and shop fitting; Clubs/dancing school
- For further information about this product, please refer to the Data Sheet under Downloads
- 1 x connection Set
- Practical transport cart made of multiplex wood
- Suitable for QUADLOCK and TRILOCK truss elements with 290 mm
- Quick and secure stacking with optional stacking ridges
- Cut-outs for safety bands for safe transport of the truss elements
- Grip hole
- 12 borings for mounting castors (optional)
- The combination of 2 transport carts and 10 stacking ridges allows transport of 12 truss elements (recommended maximum load)
- Made in Germany
- Double ball race
- Housing made of steel, zinc-plated
- Roller race hub bearing
- Replaceable bolt-on wheel
- Carrying capacity: 450 kg per set (4 castors)
- Made in Germany
- For further information about this product, please refer to the Data Sheet under Downloads
- Double-action brake (wheel and swivel)
- Double ball race
- Housing made of steel, zinc-plated
- Roller race hub bearing
- Replaceable bolt-on wheel
- Carrying capacity: 450 kg per set (4 castors)
- Made in Germany
- For further information about this product, please refer to the Data Sheet under Downloads
- Screw: hexagon screw M8 x30 DIN933 galvanized
- Nut: hexagon screw Kl.8 M8 DIN 934 galvanized
- Washer: size 8.4 DIN125 electrogalvanized
- Stacking ridge for quick and secure stacking of truss elements on matching transport carts
- Suitable for QUADLOCK and TRILOCK truss elements with 290 mm
- Made in Germany
- LC400/800daN surroundings
- Complies with EN 12195-2
- Ratchet lock
| Weight: | 79,58 kg | | ALUTRUSS TRILOCK 6082-2000 3-Way Cross Beam | | Setup: | Easy installation | | Trusspipe: | 50 mm x 2 mm | | Welding technique: | TIG-welding | | Welding material: | AlMg 5 | | Color: | Alu colored | | Strut diameter x thickness: | 16 x 2mm | | Dimensions: | Length: 2 m
Width: 29 cm
Height: 25,70 cm | | Weight: | 8,20 kg | | ALUTRUSS Truss Transport Board Combo for 3 Wheels | | Maximum load: | 6 truss systems vertical (height approx. 2.10 m) | | Dimensions: | Length: 60 cm
Width: 30 cm
Height: 4,10 cm | | Weight: | 2,19 kg | | ROADINGER Swivel Castor 100mm BLUE WHEEL light blue | | Color: | Light blue | | Dimensions: | Height: 12,8 cm
Diameter: Ø 10 cm | | Weight: | 660 g | | ROADINGER Swivel Castor 100mm BLUE WHEEL with brake | | Weight: | 930 g | | ROADINGER Bolt Set for Wheels | | Weight: | 90 g | | ALUTRUSS Truss Transport Ridge Combo | | Material: | Birch multiplex, 30 mm | | Dimensions: | Length: 60 cm
Width: 3 cm
Depth: 5 cm | | Weight: | 500 g | | SHZ Clamping Belt S400 Ratchet 5m/25mm black | | Standard: | EN 12195-2, | | Lock: | Ratchet lock | | Color: | Black | | Dimensions: | Length: 5 m
Width: 2,50 cm | | Weight: | 300 g |

  | | |
| | |
