PD220B 2x 80-Channel UHF Wireless Microphone True Diversity System BP

10B06C62

4.369,00NOK

The price includes 25% Danish VAT

Delivery time: 4-8 workdays.

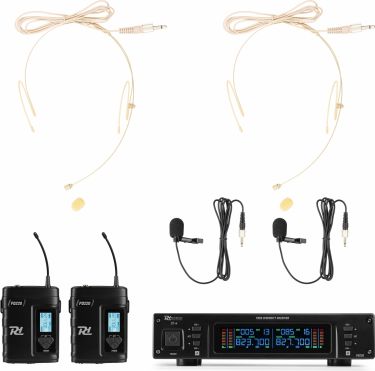

The PD220 is a professional, reliable UHF wireless microphone system with true diversity reception. True diversity design means interference free reception in high radio frequency environments and a built in noise reduction system compensates for high levels of background noise. The receiver can be placed on a surface or built into a rack case in combination with the mounting brackets. Further features include different UHF selectable frequencies, automatic channel detection, IR frequency matching, an intuitive control panel and a large LCD display. The microphone system operates in the 823-832 MHz band and is suitable for stage, presentation, voice and other applications.

2x 80-channel UHF system
2x Bodypacks with display
True diversity reception
Compact half-rack size
LCD display on bodypacks
Two detachable antennas
Auto Scan function
Balanced XLR output pro channel
6.35 mm Jack for mixed output
Including case
Incl. Skin colour headset and tie-clip microphone
19 Mounting brackets

Product colour	Black
Output connections	6.3mm Jack, XLR (3-pin)
Microphone channels	2 x 80 channels
Dynamic range	>85dB
Frequency	823.000 - 832.000 MHz
Frequency headset (bodypack)	823.000 - 832.000 MHz
Frequency response	40Hz - 17.000Hz
Frequency stability	0.002%
RF output	<10mW
Sensitivity	-90dB
Signal-to-noise ratio	>90dB
THD	<1%
Batteries	3V (2x AA)
Power supply	100-240VAC 50/60Hz (12V Adapter)
Power consumption	0.055 - 0.028A
Dimensions: Receiver	320 x 380 x 95mm
Dimensions: Body pack	30 x 68 x 100mm
Weight (kg)	2,15
Weight: Receiver	0.8
Weight: Bodypack	0.2
