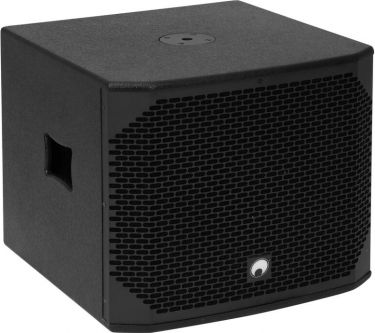

 | Categories |  | |  | Manufacturers | | | | | | Information | | | | | | Omnitronic AZX-115A PA Subwoofer active 400W 10A24D19 | 11039042
Delivery time: 4-8 workdays. | |
| |
| | Active 15" PA bassreflex subwoofer, 400 W - 38 cm (15) bass speaker with 63 mm voice coil
- Class D amplifier with 400 W
- XLR inputs and parallel outputs L/R
- XLR output L/R with high-pass filter
- Adjustable crossover frequency 80-200 Hz
- Rugged carrying handle
- Black metal grille with acoustic foam
- 1 x bass, 1 x user manual, 1 x power cord
| Power supply: | 230 V AC, 50 Hz | | Power consumption: | 650 W | | Protection class: | Protection class I | | Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) | | Power: | Rated: 400W RMS | | Frequency range: | 40 - 250 Hz | | Sensitivity: | 94 dB (1W/1m) | | Attachment system: | M20 thread | | Circuitry: | Class D | | Control elements: | Phase reversal switch | | Controls: | Limiter | | Status LED: | Limit, power, signal | | Connections: | Input: line via 2 x 3-pin XLR
Output: line via 2 x 3-pin XLR
Output: high-pass via 2 x 3-pin XLR | | Crossover frequency: | 80-200 Hz | | Speaker: | 1 x woofer (15") approx. 38 cm
Basket material: Steel
Voice coil lows (2.5") approx. 6.35 cm | | Type of speaker: | Subwoofer | | Type of construction: | Vented | | Carrying handle: | 1 pc/pcs | | Material: | MDF (Medium-density fibreboard), 15 mm | | Color: | Black, textured coating, painted | | Dimensions: | Width: 58 cm
Depth: 60 cm
Height: 52 cm | | Weight: | 26,15 kg |

| | |
| | |
