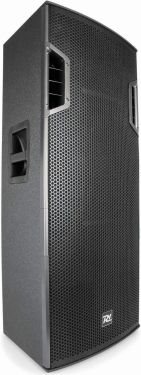

The PD6 series is a series of high-quality professional speaker cabinets in a strong and durable plywood housing. Finished with a black painted rubber coating to protect the cabinet during transport. The PD6 series are ideal for rental and touring use and deliver enough output for large venues and events. They are an extremely cost-effective solution for professional applications.
This active PA speaker has a selectable 4 preset modes for Flat, DJ, Contour and Voice sound settings. The built-in limiter provides security against clipping and distortion of your music. - Line and mic input
- Built-in 2-way active crossover
- 4 Preset EQ settings
- Efficient class-D amplifier
- Angled design for use as stage monitor
- Plywood housing with strong rubber coating
| Product colour | Black | | Speaker type | Active (amplified) | | Output power: Max | 1600W | | Output power | 800W | | Output power: RMS | 600W | | Amplifier type | Bi-amp Class D+AB | | Diameter tweeter | 1.75" | | Diameter woofer | 15" | | Voice coil | 3" | | SPL max | 135dB | | Sensitivity | 106dB | | Frequency response | 35 - 20.000 Hz | | Crossover frequency | 3.3kHz | | Dispersion | 90° x 60° | | Impedance | 8 Ohm | | Playback options | Line input, Microphone (input) | | Input connections | 6.3mm Jack, RCA, XLR (3-pin) | | Output connections | XLR (3-pin) | | Dimensions (L x W x H) | 467 x 435 x 1125mm | | Weight (kg) | 37,00 |
